AS-BW
SKU: AS-BW

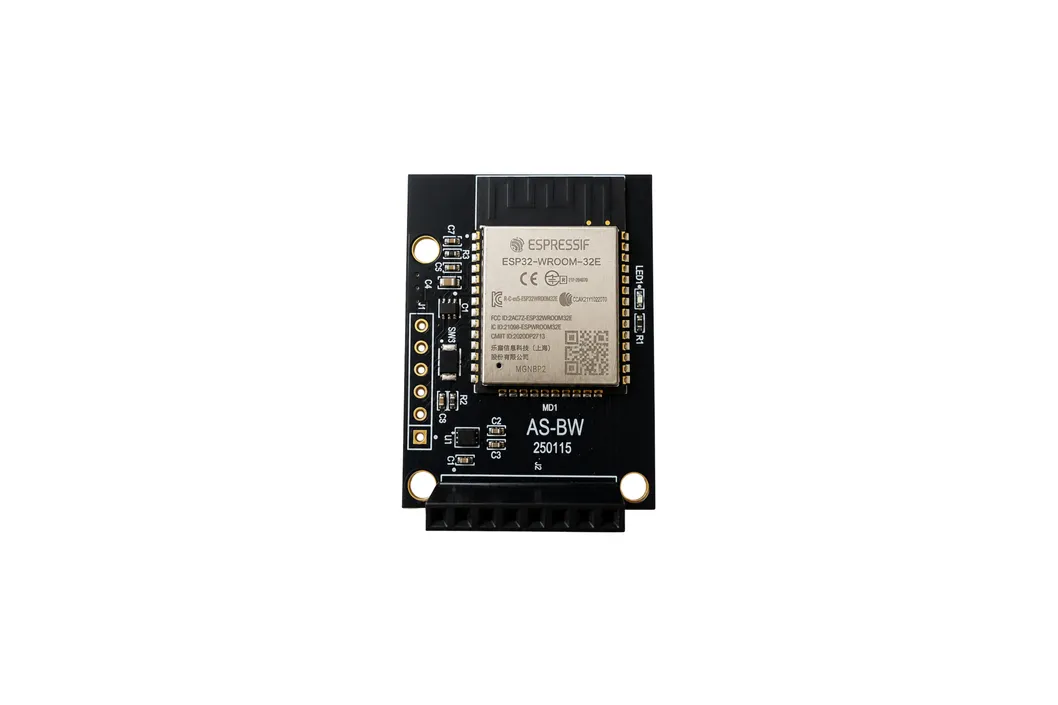

AS-BW is a communication module for connecting compatible radar modules to a site network.
Introduction
AS-BW is a communication module for connecting compatible radar modules to a site network.
It receives a radar module's UART output and forwards the data over 2.4 GHz Wi-Fi using MQTT, while Bluetooth 4.2 supports local configuration.
The compact module provides the network side of an integrated contactless sensing unit without performing radar analysis itself.
Key Features
AS-BW bridges embedded radar results to an IP network through a compact communication module.
Wi-Fi Connectivity
2.4 GHz Wi-Fi connection for site networks.
Bluetooth Setup
Bluetooth 4.2 support for local configuration.
MQTT Transport
Forwards radar data to MQTT-based systems.
Radar Interworking
Connects to compatible radar modules through UART.
Embedded Interfaces
GPIO and UART connectivity to the radar module.
Wide Temperature Range
Designed for operation from −40°C to 85°C.
Why Choose AS-BW?
AS-BW adds managed wireless transport to compatible embedded radar products.
- 01Bluetooth-assisted configuration
- 022.4 GHz Wi-Fi networking
- 03MQTT data transport
- 04UART radar interface
- 05Compact 32 × 40 mm board
The module separates network communication from radar analysis, allowing each part of the sensing system to perform a focused role.
Typical Applications
AS-BW is used where radar results need to be delivered from an embedded unit to a network service.
Patient monitoring systems
Network transport for contactless bedside sensing
Elder-care monitoring
Connectivity for room and activity sensors
Smart buildings
Radar data forwarding to automation platforms
Remote dashboards
MQTT delivery to monitoring applications
IoT sensor gateways
Wireless networking for UART-based radar modules
AS-BW Wiki
Product overview and setup instructions from the KORLINX technical wiki.
Overview
Wireless, radar-interface, operating, and supplied-item specifications.
View overviewQuick Start
Connect a radar, configure Wi-Fi and MQTT, and troubleshoot connectivity.
View quick startCustomer reviews
Customer Images / Videos
Customer reviews for AS-BW have not been published yet.
AS-BW resources
Additional product resources have not been published yet.
AS-BW videos
Product videos have not been published yet.
AS-BW specifications
Public product summary based on the supplied product documentation.
- Product type
- Bluetooth / Wi-Fi communication module
- Wireless
- Bluetooth 4.2; Wi-Fi 2.4 GHz
- Radar interfaces
- GPIO, UART
- Network transport
- MQTT over Wi-Fi
- Function
- Radar interworking and IoT data forwarding
- Supply / power
- 3.3–7 V / max 700 mW
- Operating temperature
- −40°C to 85°C
- Size
- 32 × 40 × 4.25 mm
