AS-614
SKU: AS-614

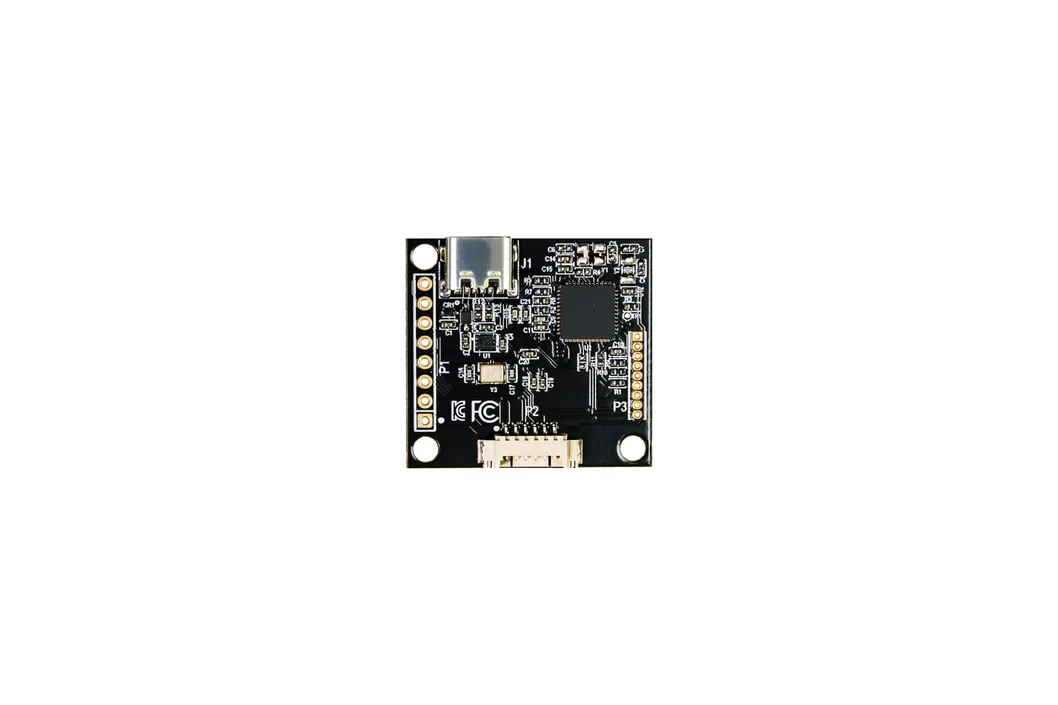

AS-614 is a compact 60 GHz FMCW multi-channel AI radar module with 1 TX and 4 RX antennas.
Introduction
AS-614 is a compact 60 GHz FMCW multi-channel AI radar module with 1 TX and 4 RX antennas.
On-module analysis supports position, presence, occupancy, vital-sign sensing, and hospital bed monitoring without requiring contact with the subject.
GPIO and UART interfaces connect the module to embedded hosts and external communication modules.
Key Features
AS-614 provides contactless AI sensing for single-person and defined-zone monitoring.
60 GHz FMCW Radar
Multi-channel 1 TX and 4 RX radar architecture.
On-module AI
Analyzes sensing data before sending results to the host.
Vital-sign Sensing
Contactless respiration and reference heart-rate monitoring.
Presence & Position
Presence, occupancy, and position information.
Wide Coverage
100° horizontal and vertical beamwidth.
Embedded Integration
GPIO and UART interfaces in a compact module.
Why Choose AS-614?
AS-614 is suitable for established single-person monitoring systems that need contactless radar analysis.
- 01On-module AI processing
- 02Vital-sign and presence sensing
- 03100° sensing beam
- 04Up to 8 m distance range
- 05Compact low-power format
Its integrated sensing pipeline provides application-ready results through a straightforward embedded interface.
Typical Applications
AS-614 supports contactless monitoring in controlled indoor environments.
Hospital bed monitoring
Patient presence and contactless vital-sign sensing
Elder care
Room and bed activity monitoring
Presence detection
Single-person occupancy sensing
Smart rooms
Position-aware environmental automation
Wellness equipment
Integrated respiration and reference heart-rate sensing
AS-614 Wiki
Product overview and setup instructions from the KORLINX technical wiki.
Overview
Specifications, board views, connectors, and operating-mode notes.
View overviewQuick Start
Bench checks, site commissioning, network attachment, and troubleshooting.
View quick startCustomer reviews
Customer Images / Videos
Customer reviews for AS-614 have not been published yet.
AS-614 resources
Additional product resources have not been published yet.
AS-614 videos
Product videos have not been published yet.
AS-614 specifications
Public product summary based on the supplied product documentation.
- Radar
- 60 GHz FMCW AI radar, 1 TX / 4 RX
- Antenna
- 3 dBi gain; 10 dBm EIRP
- Beamwidth
- 100° horizontal / 100° vertical
- Distance range
- Up to 8 m; 12 cm resolution
- Vital-sign range
- Up to 3 m
- People tracked
- 1
- Supply / power
- 3.3–7 V / max 700 mW
- Interfaces
- GPIO, UART
- Operating temperature
- −40°C to 85°C
- Size / weight
- 32 × 30 × 3.35 mm / 3.07 g
- Certifications
- KC, FCC
