AS-613
SKU: AS-613

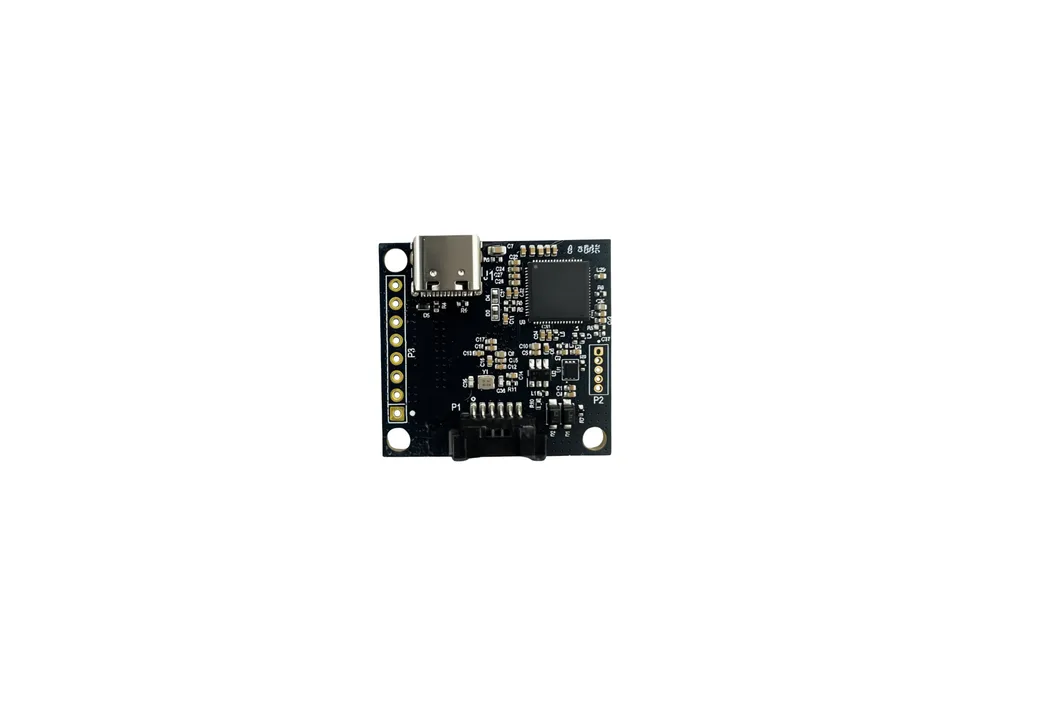

AS-613 is a 60 GHz FMCW multi-channel AI radar module with 1 TX and 3 RX antennas for contactless sensing.
Introduction
AS-613 is a 60 GHz FMCW multi-channel AI radar module with 1 TX and 3 RX antennas for contactless sensing.
On-module analysis supports presence, occupancy, posture and fall detection, vital signs, respiration waveform, and three-axis location.
The module can track up to five people and provides GPIO, UART, and USB interfaces for system integration.
Key Features
AS-613 combines wide-area multi-target sensing with on-module AI analysis.
Multi-target Tracking
Tracks up to five people within the sensing area.
AI Fall Detection
Detects falls and classifies lying, sitting, and standing posture.
Vital Signs
Heart rate, respiration, HRV, and respiration waveform sensing.
Wide Field of View
120° horizontal and vertical beamwidth.
3-axis Position
Distance and X/Y/Z location sensing up to 8 m.
Flexible Interfaces
GPIO, UART, and USB connectivity.
Why Choose AS-613?
AS-613 is designed for applications that need broad, contactless awareness of multiple people.
- 01Up to five people tracked
- 02On-module AI processing
- 03Vital-sign and posture sensing
- 04Wide 120° beamwidth
- 05Compact 32 × 30 mm format
The module delivers analyzed sensing results to the host, reducing the need to process raw radar data externally.
Typical Applications
AS-613 supports indoor monitoring where contactless multi-person awareness is required.
Patient monitoring
Contactless bed presence, posture, and fall sensing
Elder care
Fall alerts and activity-state monitoring
Room occupancy
Multi-person presence and vacancy detection
Smart buildings
Position-aware automation and space utilization
Wellness systems
Contactless respiration and reference heart-rate sensing
AS-613 Wiki
Product overview and setup instructions from the KORLINX technical wiki.
Overview
Sensing functions, specifications, board views, and connector details.
View overviewQuick Start
Power, commission, connect, and troubleshoot the AS-613 radar.
View quick startCustomer reviews
Customer Images / Videos
Customer reviews for AS-613 have not been published yet.
AS-613 resources
Additional product resources have not been published yet.
AS-613 videos
Product videos have not been published yet.
AS-613 specifications
Public product summary based on the supplied product documentation.
- Radar
- 60 GHz FMCW AI radar, 1 TX / 3 RX
- Antenna
- 3 dBi gain; 11 dBm EIRP
- Beamwidth
- 120° horizontal / 120° vertical
- Distance range
- Up to 8 m; 12 cm resolution
- Vital-sign range
- Up to 5 m; 3 m with combined functions
- People tracked
- Up to 5
- Supply / power
- 3.3–7 V / max 1000 mW, typically 650 mW
- Interfaces
- GPIO, UART, USB
- Operating temperature
- −20°C to 85°C
- Size / weight
- 32 × 30 × 3.35 mm / 3.15 g
- Certifications
- KC, FCC
