AS-611Bn
SKU: AS-611Bn

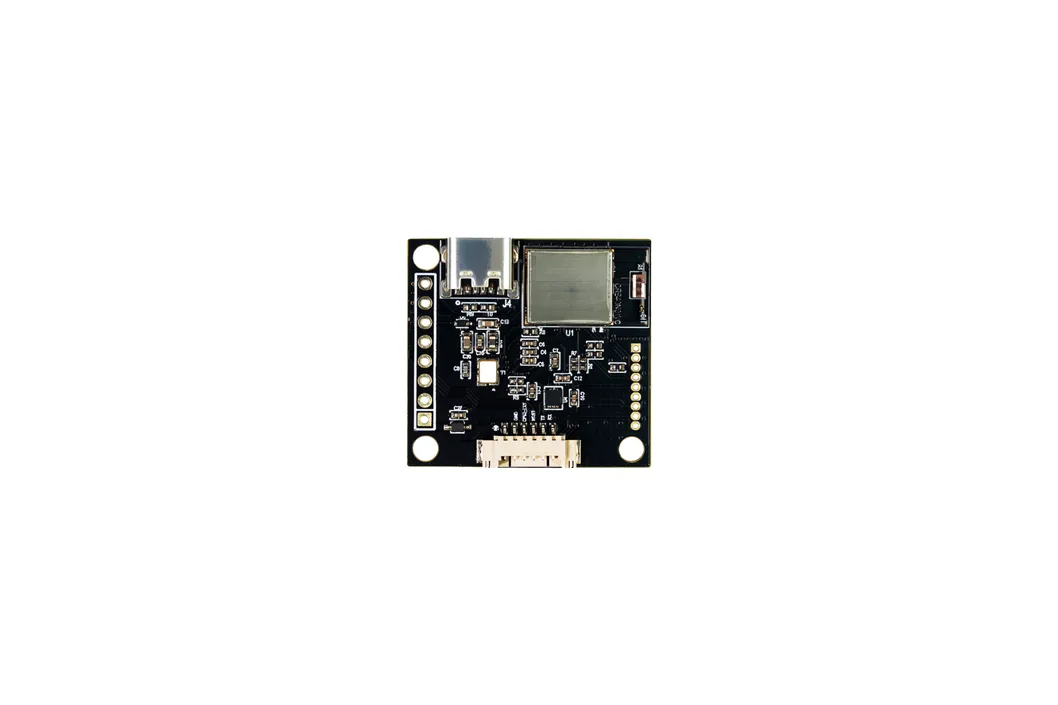

AS-611Bn is a compact 60 GHz pulsed radar module with the antenna, radar IC, and signal processing on a single 32 × 30 mm board.
Introduction
AS-611Bn is a compact 60 GHz pulsed radar module with the antenna, radar IC, and signal processing on a single 32 × 30 mm board.
Separate distance and vital-sign firmware variants support single-target ranging or contactless respiration, heart-rate, waveform, and HRV sensing.
UART, GPIO, and onboard Bluetooth Low Energy provide flexible options for OEM integration and local configuration.
Key Features
AS-611Bn combines single-target radar sensing and low-power embedded integration in a compact module.
60 GHz Pulsed Radar
Integrated 1 TX and 1 RX radar architecture.
Distance Sensing
Selectable 1, 2.5, 5, 7.5, and 10 m modes.
Vital-sign Sensing
Contactless respiration, heart-rate, waveform, and HRV outputs.
BLE Connectivity
Bluetooth Low Energy is available on the Bn variant.
Embedded Interfaces
GPIO and TTL-level UART for host integration.
Wide Temperature Range
Designed for operation from −40°C to 85°C.
Why Choose AS-611Bn?
AS-611Bn is intended for compact products that need focused, single-target sensing without an external radar processor.
- 01Compact 32 × 30 mm board
- 02Distance and vital-sign variants
- 03Low 0.3 W power consumption
- 04UART and BLE integration
- 05Multiple connector options
Its integrated design reduces the hardware needed to add contactless distance or vital-sign sensing to an OEM product.
Typical Applications
AS-611Bn supports products that monitor one person or one target within a defined sensing zone.
Contactless wellness sensing
Respiration and reference heart-rate monitoring
Presence detection
Single-person occupancy and vacancy sensing
Distance measurement
Short- and medium-range target ranging
Smart furniture
Integrated sensing for beds, chairs, and fixtures
OEM sensor products
Compact radar integration into embedded devices
AS-611Bn Wiki
Product overview and setup instructions from the KORLINX technical wiki.
Overview
Specifications, connectors, pinout, board views, and status LED.
View overviewQuick Start
Power, connect, configure, and verify the AS-611Bn module.
View quick startCustomer reviews
Customer Images / Videos
Customer reviews for AS-611Bn have not been published yet.
AS-611Bn resources
Additional product resources have not been published yet.
AS-611Bn videos
Product videos have not been published yet.
AS-611Bn specifications
Public product summary based on the supplied product documentation.
- Radar
- 60 GHz pulsed, 1 TX / 1 RX
- Antenna
- 2 dBi gain; 10 dBm EIRP
- Beamwidth
- 65° horizontal / 55° vertical
- Distance range
- 1 / 2.5 / 5 / 7.5 / 10 m modes
- Vital-sign range
- 0.15–0.5 m near; 0.4–2.0 m far
- Supply / power
- 3.3–7 V DC / 0.3 W
- Interfaces
- GPIO, UART, Bluetooth Low Energy
- Operating temperature
- −40°C to 85°C
- Board size
- 32 × 30 × 3.35 mm without connector
- Certifications
- KC, FCC
