NEO-Edge40
SKU: NEO-Edge40 Rev. 1.0
NEO-Edge40 connects wireless sensors, industrial equipment, and field I/O to local or remote systems. It combines data collection, edge processing, communications, and output control.
Introduction
NEO-Edge40 connects wireless sensors, industrial equipment, and field I/O to local or remote systems. It combines data collection, edge processing, communications, and output control.
The Rev. 1.0 platform uses a KORLINX NX40 module for BLE and Zigbee, with Ethernet, isolated RS-485, CAN, analog and digital inputs, and relay, DC, and analog outputs.
Optional KSP-N51U or KSP-N51U-M.2 expansion adds LTE-M and NB-IoT for remote sites. Some enclosure, display, electrical, and certification details remain subject to production review.
Key Features
NEO-Edge40 bridges wireless sensors, wired industrial equipment, field I/O, and upper-level systems.
BLE and Zigbee
Wireless collection through the NX40 module.
Industrial Networks
10/100 Ethernet, isolated RS-485, and CAN.
Field Inputs
Analog and opto-isolated digital inputs.
Field Outputs
Relay, 12 V DC, analog, and GPIO control.
Cellular Expansion
Optional LTE-M and NB-IoT module support.
Edge Processing
Filtering, conversion, alarms, and local control logic.
Development Access
USB-C, SWD, GPIO, and I2C expansion.
Why Choose NEO-Edge40?
NEO-Edge40 consolidates field connectivity and edge control on one industrial platform.
- 01Wireless and wired protocol support
- 02Industrial analog and digital I/O
- 03Local processing and control
- 04Optional cellular connectivity
- 05Firmware and peripheral expansion access
The platform can collect, process, forward, and act on field data without requiring separate devices for each function.
Typical Applications
NEO-Edge40 is intended for connected industrial and infrastructure systems.
Wireless sensor hubs
BLE and Zigbee device aggregation
Factory monitoring
Equipment data and local control
Smart agriculture
Environmental monitoring and actuation
Building and energy systems
Field I/O and network integration
Remote telemetry
Optional LTE-M and NB-IoT uplink
OEM controllers
Custom industrial edge applications
NEO-Edge40 Wiki
Official Rev. 1.0 overview and hardware documentation.
Customer reviews
Customer Images / Videos
Customer reviews for NEO-Edge40 have not been published yet.
NEO-Edge40 resources
Production resources have not been published yet.
NEO-Edge40 videos
Product videos have not been published yet.

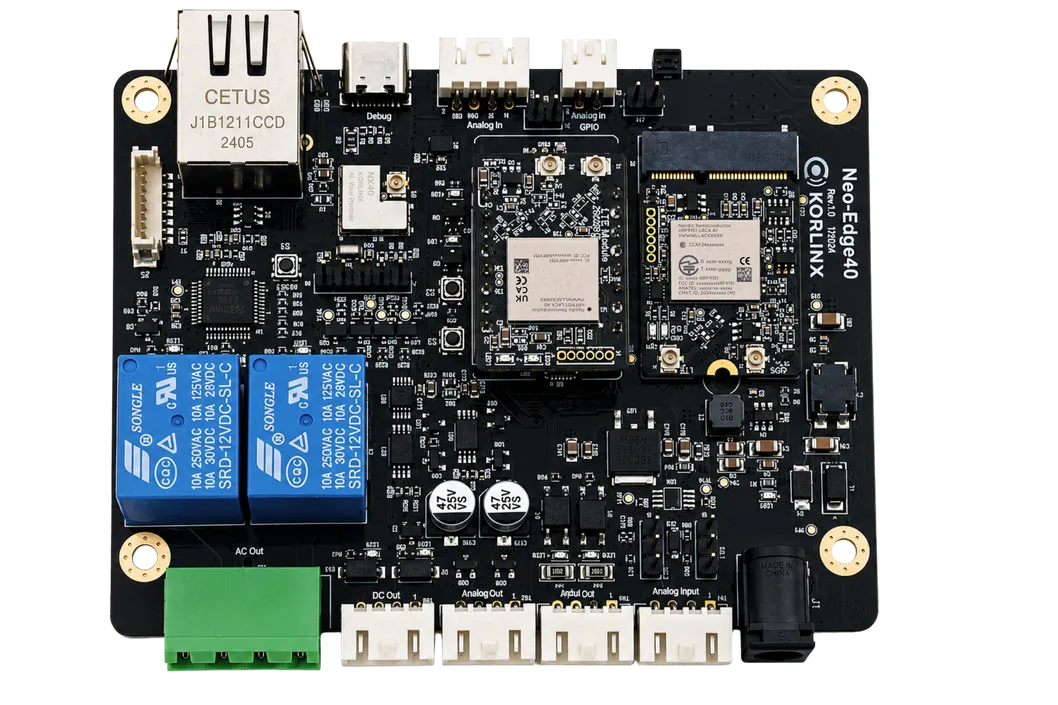

NEO-Edge40 Rev. 1.0 technical summary
Board-level information; confirm final production specifications before product design.
- Main module
- KORLINX NX40
- MCU
- Nordic nRF52840, 64 MHz Arm Cortex-M4F
- Memory
- 1 MB flash, 256 KB RAM
- Wireless
- BLE and Zigbee
- Ethernet
- 10/100 through W5500 and RJ45
- Industrial buses
- One isolated RS-485 channel; one CAN channel
- Cellular expansion
- KSP-N51U or KSP-N51U-M.2
- Analog inputs
- 2; selectable 4–20 mA or 0–5 V
- Analog outputs
- 2; 4–20 mA current output circuit
- Digital inputs
- 2; 12 V opto-isolated
- Relay outputs
- 2 contact outputs
- DC outputs
- 2; 12 V transistor low-side
- Development
- USB-C, SWD, GPIO, I2C
- Onboard sensors
- BMI323 and SHTC3
- Development environment
- Arduino IDE with NX40 board package
