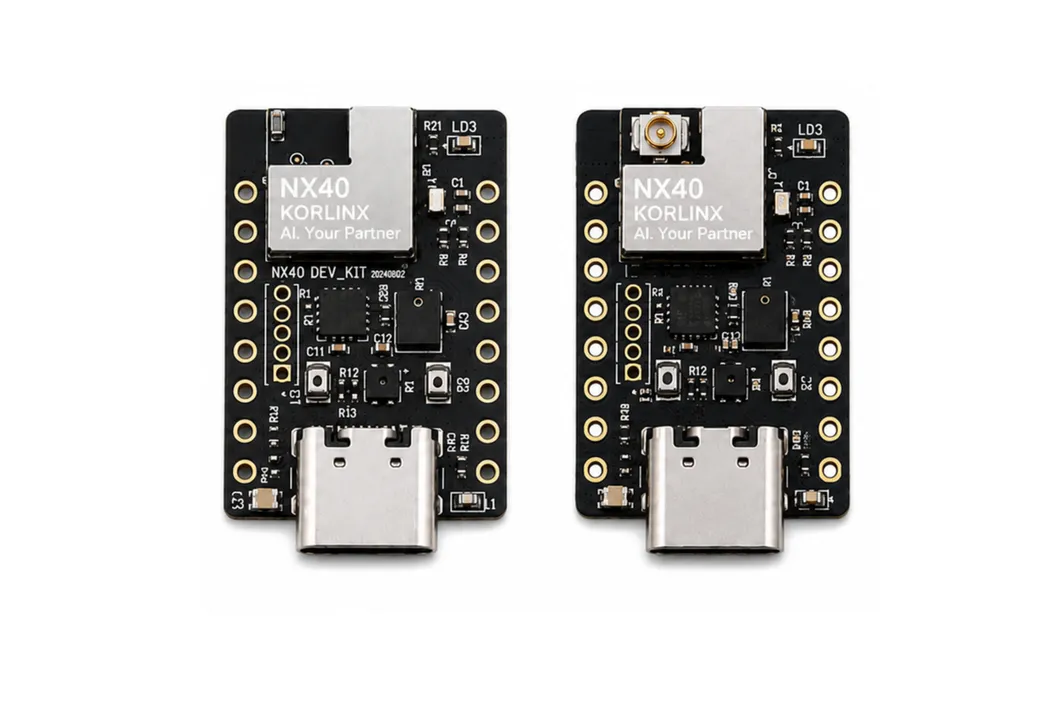

NX40 Dev Kit variants
01

NX40 Dev Kit

SKU: DEV-NX40

NX40 Dev Kit is a compact board for evaluating and prototyping applications with the KORLINX NX40 Series module.

0(0) reviews
Request Custom / Bulk Quote

Introduction

NX40 Dev Kit is a compact board for evaluating and prototyping applications with the KORLINX NX40 Series module.

It provides USB Type-C, FTDI USB-to-UART, SWD debugging, onboard motion and environmental sensors, user controls, expansion headers, and Li-Po battery support.

The board supports early BLE application development before teams move to a custom NX40 product design.

Key Features

NX40 Dev Kit brings the NX40 wireless module and essential development hardware together on one board.

NX40 Variants

Supports chip/external antenna and flash/no-flash models.

USB and UART

USB Type-C and FTDI FT234XD.

SWD Debugging

Firmware programming and debug header.

Onboard Sensors

6-axis IMU and temperature/humidity sensor.

User I/O

RGB LED, status LEDs, and user/reset buttons.

Battery Support

Li-Po connector and BQ25100 charger.

Expansion

J3 and J4 headers expose module signals.

Why Choose NX40 Dev Kit?

The kit provides a complete board-level environment for NX40 evaluation.

  • 01Multiple NX40 module variants
  • 02USB-to-UART and SWD
  • 03Integrated sensors
  • 04Battery charging
  • 05Accessible GPIO and analog inputs

It supports fast firmware bring-up, sensor demonstrations, and hardware validation.

Typical Applications

Use the board to validate NX40-based wireless products.

01

BLE application testing

Advertising, connections, and data transfer

02

Sensor prototypes

Motion and environmental data

03

Beacon development

Proximity and identification concepts

04

Smart home evaluation

Wireless sensing and control

05

Industrial prototypes

Short-range monitoring nodes
