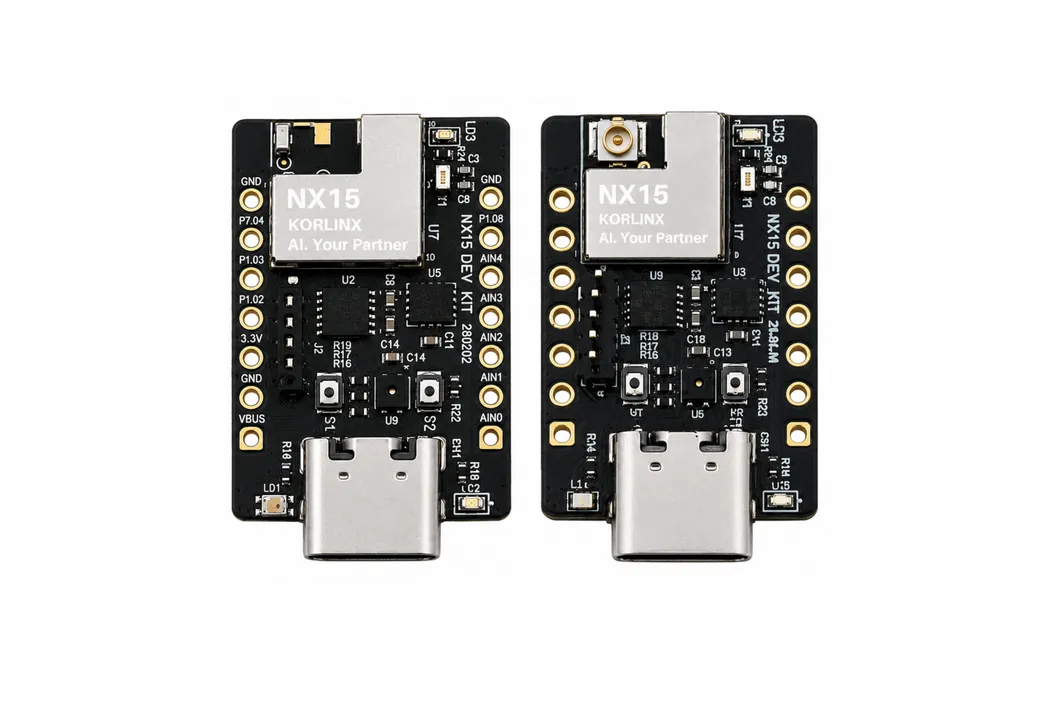

NX15 Dev Kit front
01

NX15 Dev Kit

SKU: DEV-NX15

NX15 Dev Kit is a compact development board for evaluating and prototyping applications with the NX15 Series BLE module.

0(0) reviews
Request Custom / Bulk Quote

Introduction

NX15 Dev Kit is a compact development board for evaluating and prototyping applications with the NX15 Series BLE module.

It exposes USB Type-C, FTDI USB-to-UART, SWD debugging, expansion headers, buttons, LEDs, a Li-Po connector, and battery charging hardware.

Onboard motion and temperature/humidity sensors support BLE sensor demonstrations, wearable prototypes, smart home testing, and industrial monitoring development.

Key Features

The board combines the NX15 wireless platform with the hardware needed for firmware bring-up and application evaluation.

NX15 Platform

nRF54L15-based Bluetooth LE 5.4 and multiprotocol module.

USB and UART

USB Type-C with FTDI FT234XD USB-to-UART.

SWD Debugging

Firmware download and debugging access.

Onboard Sensors

LSM6DS3TR-C IMU and SHTC3 temperature/humidity sensor.

User I/O

RGB LED, charge/power LEDs, reset and user buttons.

Battery Support

Li-Po connector and BQ25100 charger IC.

Expansion Headers

J3 and J5 access for sensors, GPIO, and peripherals.

Why Choose NX15 Dev Kit?

The kit shortens the path from NX15 evaluation to custom product design.

  • 01Ready-to-use USB and UART
  • 02Integrated SWD debugging
  • 03Onboard motion and environmental sensors
  • 04Battery-powered prototyping
  • 05Accessible expansion headers

Developers can validate firmware, wireless behavior, sensors, and host peripherals before designing a custom PCB.

Typical Applications

Use the NX15 Dev Kit for early software and product validation.

01

BLE application testing

Advertising, connections, and data transfer

02

Sensor evaluation

Motion and environmental sensing

03

Wearable prototypes

Battery-powered compact concepts

04

Smart home prototypes

BLE and multiprotocol endpoints

05

Firmware validation

Debugging and peripheral integration
