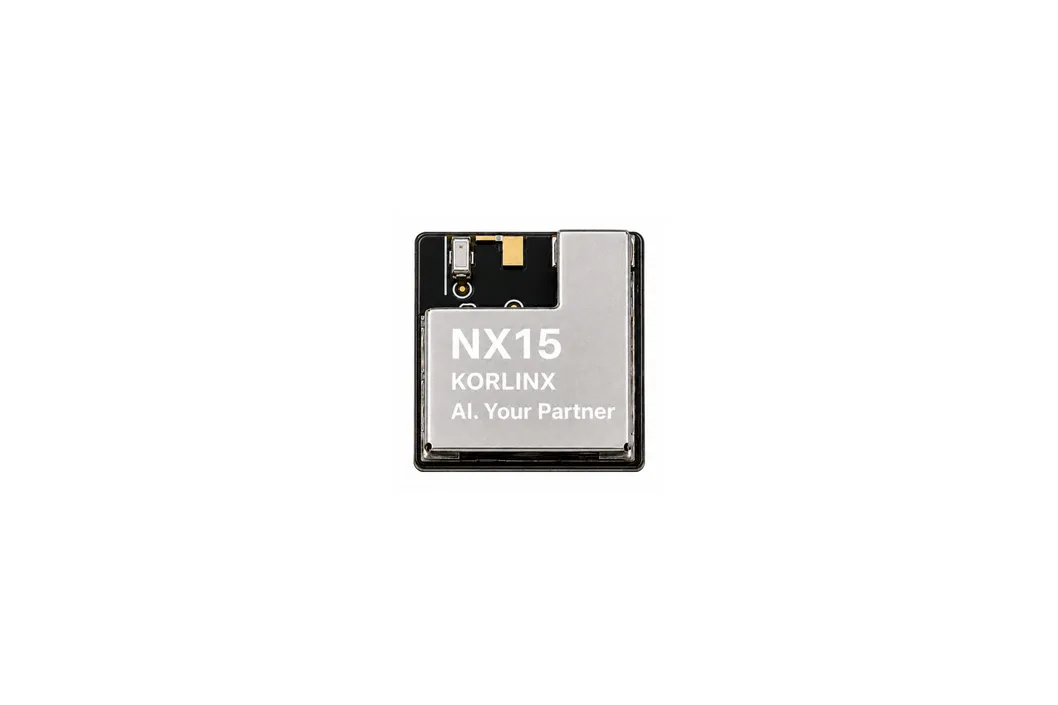

NX15
SKU: NX15 Series
NX15 is an ultra-compact wireless module series based on Nordic Semiconductor's nRF54L15 platform for Bluetooth Low Energy and multiprotocol 2.4 GHz products.
Introduction
NX15 is an ultra-compact wireless module series based on Nordic Semiconductor's nRF54L15 platform for Bluetooth Low Energy and multiprotocol 2.4 GHz products.
It combines a 128 MHz Arm Cortex-M33 processor, a 128 MHz RISC-V coprocessor, 1.5 MB internal NVM, 256 KB RAM, and optional external flash in a 9.5 × 9.5 × 1.95 mm LGA package.
Chip-antenna and U.FL variants give designers options for compact sensors, wearables, smart home devices, industrial nodes, and short-range controls.
Key Features
NX15 provides modern Bluetooth and 802.15.4 capabilities in a compact module platform.
Bluetooth LE 5.4
Modern low-power wireless connectivity.
Dual Processing
128 MHz Arm Cortex-M33 and 128 MHz RISC-V coprocessor.
Multiprotocol 2.4 GHz
Thread and Zigbee through 802.15.4 capability.
Compact LGA
9.5 × 9.5 × 1.95 mm module package.
Rich Interfaces
UART, SPI, I2C, PWM, ADC, PDM, GPIO, and SWD.
Antenna Options
Chip antenna and U.FL external antenna variants.
Zephyr Platform
Compatible with nRF Connect SDK and Zephyr RTOS.
Why Choose NX15?
NX15 targets compact products that need capable processing and flexible low-power wireless.
- 01Small LGA package
- 02Bluetooth LE 5.4
- 03Thread and Zigbee capability
- 04Dual Arm and RISC-V processing
- 05Multiple antenna and flash variants
The module reduces RF and platform integration work while retaining broad peripheral access.
Typical Applications
NX15 is suitable for compact battery-powered and connected devices.
Wireless sensors
Low-power environmental and motion nodes
Wearables
Compact connected personal devices
Smart home
Thread, Zigbee, and BLE endpoints
Asset tracking
Beacons and portable trackers
Industrial monitoring
Short-range equipment telemetry
NX15 Wiki
NX15 module information is documented with the NX15 Dev Kit integration guide.
Customer reviews
Customer Images / Videos
Customer reviews for NX15 have not been published yet.
NX15 resources
Standalone NX15 resources have not been published yet.
NX15 videos
Product videos have not been published yet.
NX15 specifications
Module data documented in the NX15 Dev Kit hardware guide.
- Platform
- Nordic nRF54L15
- Processors
- 128 MHz Arm Cortex-M33; 128 MHz RISC-V
- Memory
- 1.5 MB NVM, 256 KB RAM; optional external flash
- Wireless
- Bluetooth LE 5.4; 802.15.4 Thread / Zigbee
- RF output
- Up to +8 dBm
- Supply
- 1.7–3.6 V
- Temperature
- -40°C to +105°C
- Size
- 9.5 × 9.5 × 1.95 mm
- Interfaces
- UART, SPI, I2C, PWM, ADC, PDM, GPIO, SWD
